M&R Dryers From Press Tech

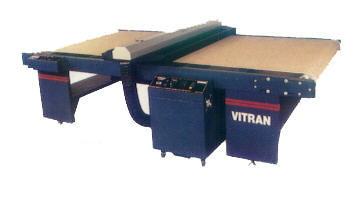

Press Tech supports Economax, Maxi-Cure, Radicure,, Eliminator, Super Sprint , Guardian Modular, Guardian, Sprint , and Vitran
Some images are available in larger sized. Click on image to see if it is available in full size
This page is printable for catalog use
 |
 |
| Economax (EM) | Maxi-Cure (MC) |
| Radicure (RD) | |
 |
 |
| Eliminator (EL) | Super Sprint (SS) |
 |
 |

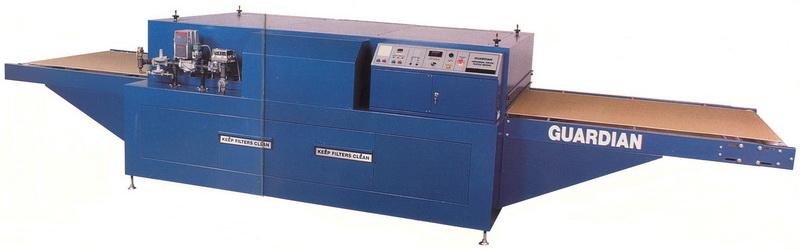

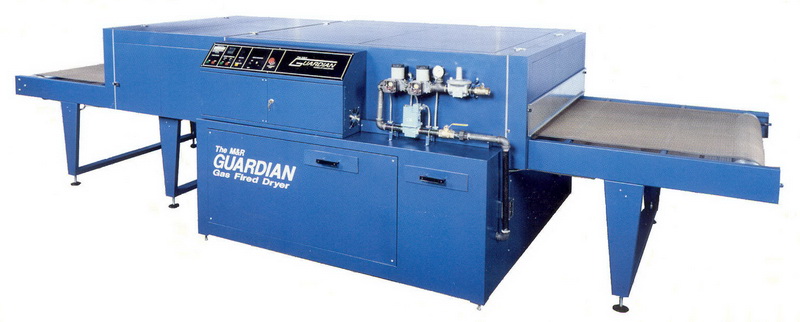

| Guardian Modular (GM) | Guardian (GD) |
 |
|
| Sprint (S) | Vitran (VT) |
B-press base parts, E-electrical, F-fasteners, H-press head components, K-knobs & levers, P-pneumatic components, T-press table components. Prices subject to change without notice
| Item | Image | Description | Price |
| DBB00049 |
 |

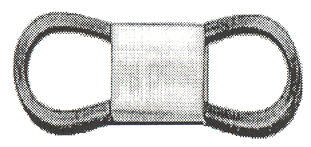

Blower belt B-49 (S) | 13.50 |
| DBB00051 | See above | Blower belt B-51 | 15.00 |
| DBB00054 | See above | Blower belt B-54 [2] (EL) | 14.00 |
| DBB00055 | See above | Blower belt B-55 (SS) | 16.00 |
| DBBC25E1 (3023085) |
 |

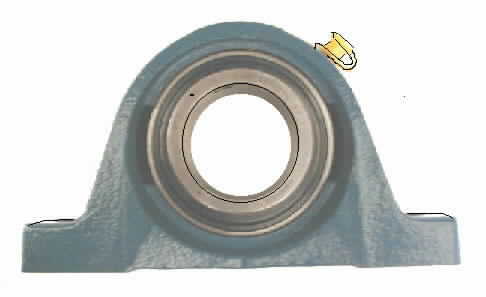

Main blower shaft pillow block bearing MB C25-1-7/16" (EL) | 97.00 |
| DBBFC4251 (3023093A) |
 |

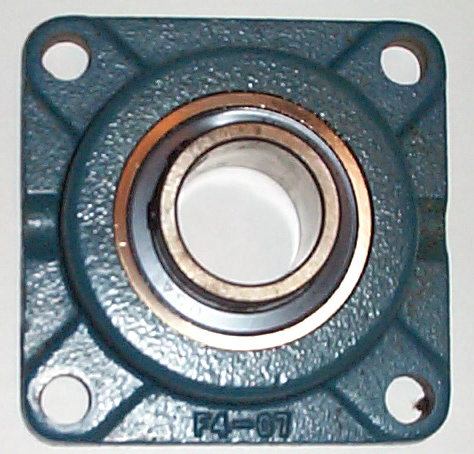

Main blower shaft flange mount bearing MB FC425-1 (1-7/16") (S) | 64.00 |
| DBBFC4252 (3023168) | See above | Main blower shaft flange mount bearing MB C425-2 (2-3/16") (SS) | 153.00 |
| DBL48588 |
 |

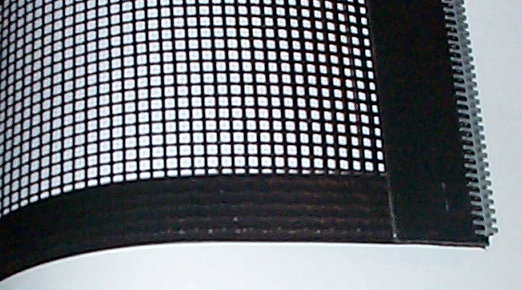

48" dryer belt 48"x588" (49') [belt comes in black or tan with nylon heat sealed (not stitched) sides] (S,SS) | Call |
| DBL60543 | See above | 60" dryer belt 60"x543" (45'3") (MC) | Call |
| DBL60588 | See above | 60" dryer belt 60"x588" (49') (S,SS) | Call |
| DBP00060 | 60" Dryer belt pin | 16.00 | |
| DBP00072 | 72" Dryer belt pin | 17.00 | |
| DDL06007 |
 |

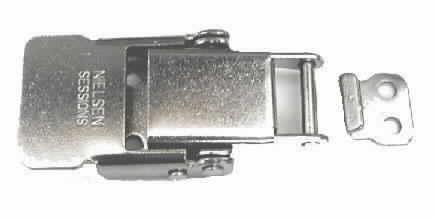

Draw latch for modules (S,SS,GM) | 6.50 |
| DGB0140K |
 |

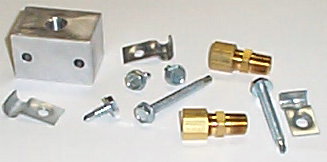

Auxiliary dryer grease block assembly [zerk grease block, brass fittings, mounting clamps and mounting screws] [tubing is ordered by dryer size PCT00014] (S) [see picture on innovations page] | 15.00 |
| EBI00F35 (1015000) |
 |
Belt speed indicator 110/220 VAC power supply; 90/180VDC input (All) (replaces original-obsolete)
 |
135.00 |
| ECBST01R (1010002A) |
 |
Idec N/C E/stop contact (RED) (All) | 7.00 |
| ECBST10G (1010002B) |
 |
Idec N/O E/stop contact (GREEN) (All) | 7.00 |
| ECBSTD00 |
 |
Idec dummy contact block E/stop (All) | 0.40 |
| ECRRH2B1 (1011005) |
 |
Idec relay RH2BUL-120VAC 8 pin (All) | 13.00 |
| ECS05278 (1024000) |
 |
Current sensor 115V (MC) | out of stock |
| ECS2008A (1012008A) |
 |

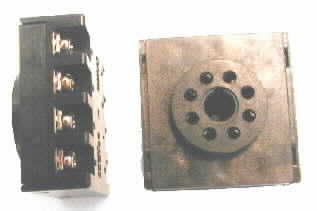

Fuji temp controller socket 8 pin (All) | 10.50 |
| EDC23001C (1012000) |
 |
DC speed board 115/230V Minarik MM23001C (All) | 161.00 |
| EESAO301 |
 |
Idec emergency stop switch body-push/push (without red button) AOD-100 (EL,GD) | 39.50 |
| EESAV300 |
 |
Idec emergency stop switch body-push/turn (without red button) AVD300 (S,SS,GM) | 23.00 |
| EFB30A3S (1005001) |
 |

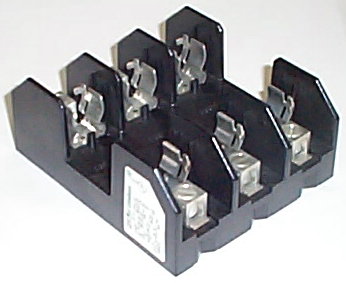

Triple fuse block 250V-30A screw taps | 20.00 |
| EFB60A3L (1005002) |
 |
Triple fuse block 250V-60A screw lugs | 37.00 |
| EFC00C90 |
 |
Fan cord for 2 prong fan | 3.00 |
| EFG00004 |
 |
4" Fan guard (All) | 2.50 |
| EFN115V4 (1009000) |
 |
4" Cooling fan 115V (S,SS) | 29.00 |
| EFNON001 |
 |
NON 1 amp fuse | 2.00 |
| EFNON003 | See above | NON 3 amp fuse | 2.00 |
| EFNON005 | See above | NON 5 amp fuse | 2.00 |
| EFNON010 | See above | NON 10 amp fuse | 2.00 |
| EFNON020 | See above | NON 20 amp fuse | 2.00 |
| EFNON030 | See above | NON 30 amp fuse | 2.00 |
| EFNON035 | See above | NON 35 amp fuse | 2.50 |
| EFNON040 |
|
NON 40 amp fuse | 3.00 |
| EFNON045 | See above | NON 45 amp fuse | 3.50 |
| EFNON060 | See above | NON 60 amp fuse | 5.00 |
| EFNON1/2 |
|
NON 1/2 amp fuse | out of stock |
| EFP14116 |
 |

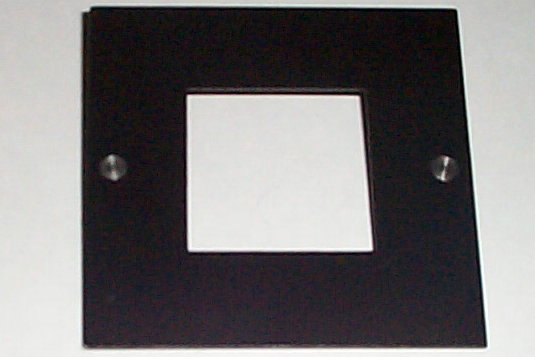

Face place 1/4 din to 1/16 din-change from a Konbo temp controller to a Fuji temp controller (MC) | 21.00 |
| EFR17011 (1017011) |
 |
Flame rod-Eclipse burner (EL,GD) | 191.00 |
| EFR18117 (1028002) |
 |
Flame rod-Maxon burner (S,SS,GM) | 45.00 |
| EGT00005 (1007017) |
 |
5" Glass tube for thermo couple probe-IR panel (EL,S,SS) | 4.50 |
| EHS00HS2 |
 |
Solid State relay heat sink (EC,RD) | 17.25 |
| EHTW0014 (1002013) |
 |
Hi temp wire 14 GA. per/ft | 1.25 |
| EHTW0018 (1002039) |
|
Hi temp wire 18 GA. per/ft | 0.85 |
| ELP115RD (1013000) |
 |
115V RED indicator lamp (EC,MC) | 4.50 |
| EMR160NO1 |
 |

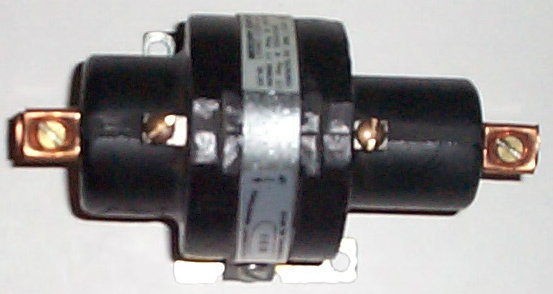

Mercury relay single pole 60A NO-220V coil (MC) | 69.00 |
| EMR260N02 (1011000) |
 |
Mercury relay double pole 60A NO-220V coil (MC) | 102.00 |
| EMR360NO3 (1011007) |
 |
Mercury relay triple pole 60A NO-220V coil (MC) | 125.00 |
| EOO10A25 (1010033) |
 |
On/Off/On DPDT switch 10A 250V (EC) | 13.50 |
| ERS0SH2B (1011006) |
 |
Idec relay socket for RH2B 8 pin (All except EC) | 9.00 |
| ESP01311 (1028003) |
 |
Spark plug for Maxon burner (S,SS,GM) | 25.00 |
| ESP17012 (1017013) |
 |
Spark plug for Eclipse burner (EL) | 191.00 |
| ESR28075 (1011009) |
 |

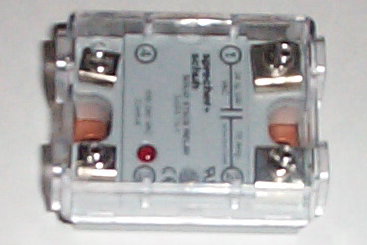

75A Solid state relay w/protective cover (EC,RD) | 82.00 |
| ETC096KA (1014000) |
 |

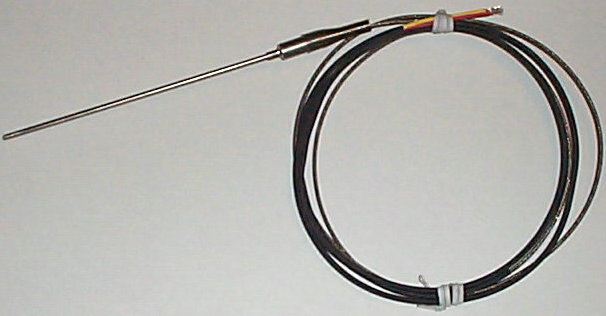

96" Type K shielded thermo couple w/insulated sheath to avoid shorting inside control box on hot terminals [red wire #21(-) term #2, yellow wire #22(+) term #1] (EC,MC,RD,EL/S/SS infra-red flash panel) | 49.00 |
| ETCPXZ4Y (1012003) |
 |
Fuji temperature controller PXZ4RAY-4V (EC,MC,RD,EL/S/SS infra-red flash panel) | out of stock |
| ETLS400A (1012022) |
 |
Thermo limit switch 400 deg w/wiring pigtails (VT) | 21.00 |
| ETLS500A (1012005) | See above | Thermo limit switch 500 deg w/wiring pigtails (S,SS) | 21.00 |
| EWT00004 |
 |
Wire tie 4" type I class 1 | 0.05 |
| EWT0814HT (1003036) |
 |
Nickel plated hi-temp 8 ga. 1/4" eyelet | 0.30 |
| EWT1010HT (1003012) |
 |
Nickel plated hi-temp 10-12 ga. 8-10 stud eyelet | 0.25 |
| EWT1014HT (1003047) |
 |
Nickel plated hi-temp 10 ga. 1/4" eyelet | 0.25 |
| EWT10HTC |
 |
Nickel plated hi-temp wire butt connector 10-12 ga. | 0.20 |
| EWT1614F (1003006) |
 |
BLUE female wire spade term end 14-16 ga. | 0.80 |
| EWT1614M (1003007) |
 |
BLUE male wire spade term end 14-16 ga. | 0.80 |
| EWT1806F (1003008) |
 |
RED female flange block fork term 18-22 ga. #6 stud | 0.15 |
| EWT2218F (1003005) |
 |
RED female spade term end 18-22 ga. | 0.50 |
| EWT2218M (1003004) |
 |
RED male spade term end 18-22 ga. | 0.50 |
| FAR00316 |
 |
Aluminum rivet 3/16" dia.1/8-1/4 [to mount flange ring onto the inside of exhaust blower housing] (S) | 0.05 |
| FCS1024S |
 |
Hi-temp #10-24x1/2" SS cap screw [heating elements] | 0.40 |
| FFS63212 (3004002) |
 |
Cabinet screw 6-32x1/2" flat head | 0.10 |
| FFW00038 (30000038) |
 |
3/8" USS flat washer | 0.10 |
| FFWS10SS |
 |
#10 SS flat washer 18-8 [element wire connection] | 0.05 |
| FHB14285 |
 |
1/4"-28x1/2" Hex bolt [Eliminator blower mount] (EL) | 0.10 |
| FHB381634 |
 |
3/8"-16x3/4" Hex bolt | 0.25 |
| FHN1024SS |
 |
10-24 SS Hex nut [heating elements] | 0.20 |
| FHN03816 (3013007) |
 |
3/8"-16 Hex nut | 0.10 |
| FJN03816 (3013014) |
 |
3/8"-16 Jam nut | 0.10 |
| FLW00010S |
 |
#10 SS lock washer [heating elements] | 0.03 |
| FPS1024S |
 |
#10-24x1/2" SS cap screw, washers & nut set [heating elements] | 0.70 |
| FRS63212 (3004002) |
|
6-32x1/2" Round head cabinet screw | 0.10 |
| FSM01005 |
 |
#10x1/2" Self tapping sheet metal screw | 0.10 |
| FTS00014 |
 |
1/4" Grease tubing strap | 0.20 |
| FTS00038 |
|
3/8" Thermo couple strap | 0.25 |
| HLPK48NH |
 |

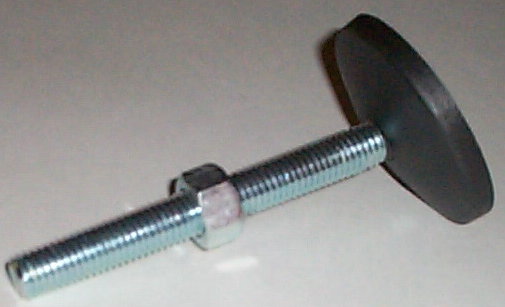

Swivel base wo/holes for dryer rail leveling support (S,SS,GM) | 14.50 |
| KDH00425 (3033008) |
 |

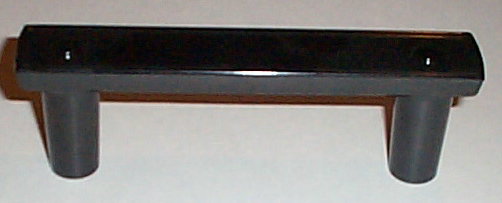

Molded handle (S,SS,GM) | 5.00 |
| KEKABD3B |
 |
E-stop mushroom knob push/push for IDEC EESAO100 | 8.50 |
| KSC33006 (3033006) |
 |
1/4" Dryer belt speed adjustment knob | 3.50 |
| LUB01250 (7018004) |
 |

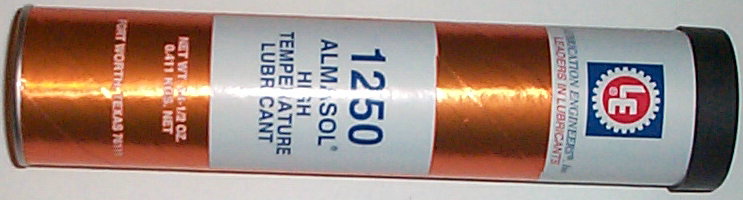

Almasol 1250 hi-temp dryer bearing grease (S,SS,GM) | 12.00 |
| PCF1418E | - | Compression fitting 1/4" OD tube x 1/8" pipe-elbow | 1.00 |
| PCF1418S |
 |
Compression fitting 1/4" OD tube x 1/8" pipe-straight | 0.75 |
| PCT00014 |
 |

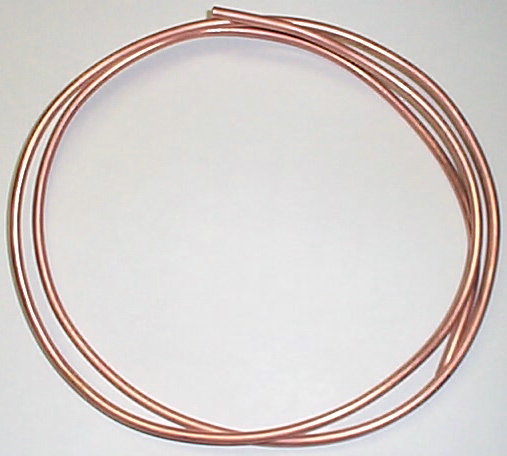

Copper tubing 1/4" per/ft | 0.50 |
| PGF0018S (2003055) |
 |
Grease fitting 1/8" pipe straight | 0.75 |
| PGF01845 (2003032) |
 |
Grease fitting 1/8" pipe 45 degree | 1.00 |
| SVF5X6GT |
 |
Dryer vent filter kit w/velcro and 4 filters | 4.00 |
