M&R Flashes From Press Tech
Parts meet or exceed OEM Prices subject to change without notice NO RETURN ON ELECTRICAL PARTS!
Some images are available in larger sized. Click on image to see if it is available in full size
This page printable for catalog use.
 |
 |
 |
 |
|

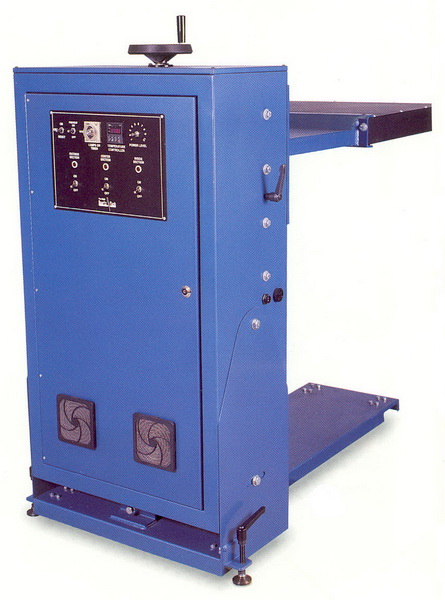

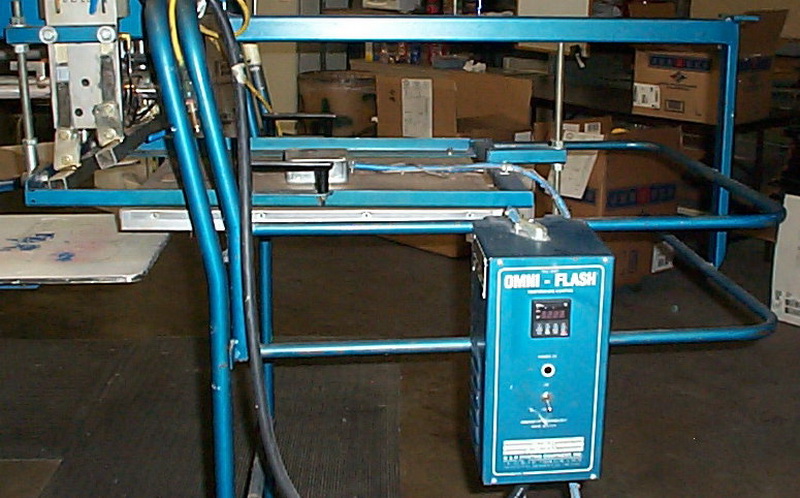

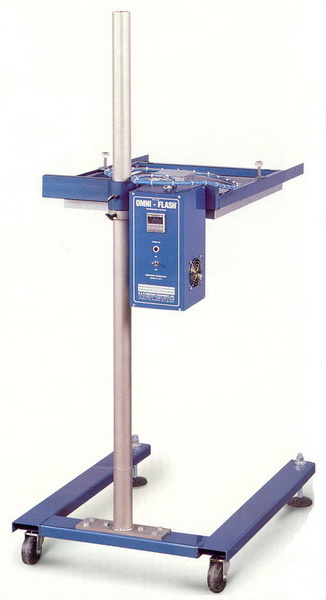

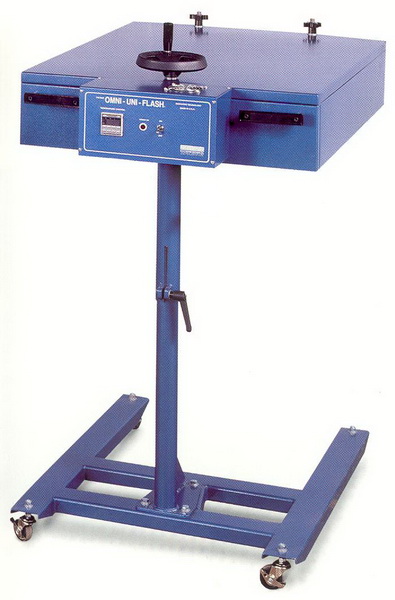

| Omni (O) | Quartz (Q) | Omni-Uni (UNI) | CXG (Gauntlet) | CX (Challenger) |
| Item | Image | Description | Price |
| ECRRH2B2 (1011010) |
 |
Relay RH2BUL-230VAC 8 pin (Q)
 |
16.00 |
| ECS2008A (1012008A) |
 |
Fuji temp controller wiring socket 8 pin (ALL)
 |
10.50 |
| EFB30A3S (1005001) |
 |
Triple fuse block 250V-30A
 |
20.00 |
| EFB60A3L (1005002) |
 |
Triple fuse block 250V060A
|
21.00 |
| EFC00C90 |
 |
Fan cord for 2 prong fan connection | 3.00 |
| EFG00003 |
 |
3" wire fan guard (ALL except Q) | 2.50 |
| EFG00004 |
|
4" wire fan guard (Q) | 2.50 |
| EFMR1818 (1007000) |
 |
18"x18" flash panel 4000W@208V (shown is the new stud connectors for a more positive connection on all panels) | 355.00 |
| EFMR1822 (1007001) | See above | 18"x22" flash panel 3800W@208V | 398.00 |
| EFMR2224 (1007002) | See above | 22"x24" flash panel 5280W@208V | 475.00 |
| EFN115V4 (1009000) |
 |
4" cooling fan 115V (Q) | 29.00 |
| EFN230V3 (1009002) |
 |
3" cooling fan 230V (ALL except Q) | 27.00 |
| EFNON001 |
 |
NON 1 amp fuse
|
2.00 |
| EFNON025 See above | See above | NON 25 amp fuse | 2.00 |
| EFNON030 See above | See above | NON 30 amp fuse | 2.00 |
| EFNON35 |
 |
NON 35 amp fuse
|
2.50 |
| EFNON40 See above | See above | NON 40 amp fuse | 3.00 |
| EFNON45 See above | See above | NON 45 amp fuse | 3.50 |
| EFNON60 See above | See above | NON 60 amp fuse | 5.00 |
| EFNON1/2 |
|
NON 1/2 amp fuse | out of stock |
| EFP14116 |
 |
Face plate 1/4 din to 1/16 din-change from a Konbo temp control to a Fuji temp control | 21.00 |
| EGT00005 (1007013) |
 |
Glass tube for thermo couple probe (ALL infra-red panels) | 6.00 |
| EHS00HS2 |
 |
Solid state relay heat sink | 26.00 |
| EHTW0010 (1002012) |
 |
Hi temp wire 10 ga. per/ft | 2.00 |
| EHTW0014 (1002013) |
|
Hi temp wire 14 ga. per/ft | 1.50 |
| EHTW0018 (1002039) |
|
Hi temp wire 18 ga. per/ft | 1.25 |
| ELP220RD (1013004) |
 |
220V RED indicator lamp (CX,CXG,O,UNI) | 4.50 |
| EOO0S822 (1010008) |
 |
On/Off 30A 250V switch flash unit (CX,CXG,O,UNI) | 42.00 |
| EQTC7133 (1007133) SONEKO |
 |
Quartz clear tube 20.25" OAL 17.25"HL R7 medium wave 220V 1080W yellow ends Q | 61.00 |
| ERS0SH2B (1011006) |
 |
Ice cube relay socket 8-pin
|
9.00 |
| ESR28075 (1011009) |
 |
75A solid state relay w/protective cover | 82.00 |
| ETC096KA (1014000) |
 |
96" Type K thermo couple w/insulated shield sheath to prevent shorting inside of cabinet [red wire #21 (-) term #2, yellow wire #2 (+) term #1] | 49.00 |
| ETCPXZ4Y (1012003) |
 |
Temperature controller PXZ4RAY1-4V (ALL) [replaces previous units]
|
out of stock |
| EWT00004 |
 |
Wire tie 4" type I class /ea. | 0.05 |
| EWT0814HT (1003036) |
 |
Hi-temp 8 ga. wire terminal eyelet | 0.50 |
| EWT1010HT (1003012) |
 |
Hi-temp 10/12 ga. 8-10 stud wire terminal eyelet | 0.50 |
| EWT1014HT (1003047) |
 |
Hi-temp 10 ga. 1/4" wire terminal eyelet | 0.50 |
| EWT10HTC |
 |
Hi-temp wire butt connector 10-12 ga. | 0.20 |
| EWT1614F (1003006) |
 |
BLUE female spade terminal end 14-16 ga. | 0.80 |
| EWT1614M (1003007) |
 |
BLUE male spade terminal end 14-16 ga. | 0.80 |
| EWT1806F (1003008) |
 |
RED female flanged block fork terminal end 18-22 ga. #6 stud | 0.15 |
| EWT2218F (1003005) |
 |
RED female spade terminal end 18-22 ga. | 0.50 |
| EWT2218M (1003004) |
 |
RED male spade terminal end 18-22 ga. | 0.50 |
| FCS1024S |
 |
10-24x1/2" Stainless steel cap screw for heating element connections | 0.50 |
| FCX00012 |
 |
1/2"-20x12" Omni flash/CX mounting rod | 6.00 |
| FCXG0013 |
 |
3/8"-24x13" CXG mounting rod | 4.75 |
| FFS38175 |
 |
CXG mounting spacer 3/8"x1.75"-rear mount | 8.00 |
| FFW14SAE (3020005) |
 |
1/4" flat washer | 0.05 |
| FFW00038 (3020010) |
 |
3/8" flat washer | 0.10 |
| FFWS10SS |
 |
#10 Stainless steel flat washer-heater element connection | 0.05 |
| FHB381615 (3008005) |
 |
3/8"-16x1 1/2" hex bolt for flash mount tube to head | 0.25 |
| FHB38163A |
 |
3/8"-16x3" Full threaded hex head bolt assembly-CXG rear leveler mounting bolt for spacer #FFS38175 | 1.50 |
| FHB381634 |
|
3/8"-16x3/4" hex bolt | 0.25 |
| FHN00632 |
 |
6-32 hex nut for cabinet screw | 0.05 |
| FHN01220 (3013002) |
 |
1/2"-20 hex nut | 0.15 |
| FHN01420 |
|
1/4"-20 hex nut | 0.05 |
| FHN03824 |
 |
3/8"-24 hex nut for CXG height adjustment | 0.10 |
| FHN1024SS |
|
10-24 Stainless Steel hex nut for heating element connection | 0.20 |
| FHN51618 |
|
5/16"-18 hex nut | 0.10 |
| FJN01220 (3013023) |
 |
1/2"-20 jam nut for CX/UNI height adjustment | 0.25 |
| FJN03824 (3013015) |
|
3/8"-24 jam nut for CXG height adjustment | 0.10 |
| FLW00010 |
 |
#10 lock washer | 0.02 |
| FLW00014 (3012001) |
 |
1/4" lock washer | 0.03 |
| FLW00038 (3022002) |
 |
3/8" lock washer | 0.05 |
| FLW00516 |
|
5/16" lock washer | 0.05 |

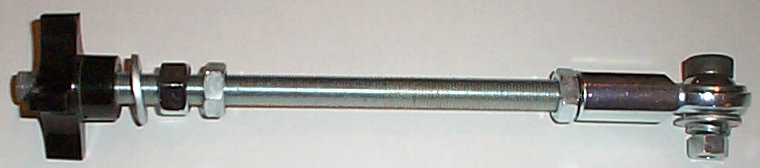

| FCXG038F |
 |
CXG mounting rod assembly w/hardware-use FSB3834A mounting bolt | 13.00 |
| FOUF012F |
 |
Omni-Uni/CX mounting rod assembly w/hardware | 22.00 |

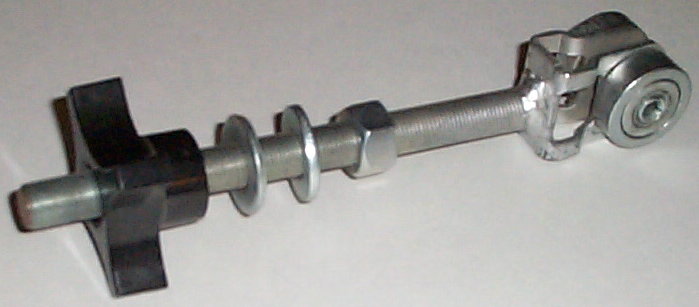

| FOUF12RT (8074413) |
 |
Re-built Omni-Uni trolley assembly (CX,UNI) | 20.00 |
| FOUF12TR (8074413) |
|
NEW Omni-Uni trolley assembly (CX,UNI) | 39.00 |
| FPS1024A |
 |
Hi-temp connector assembly of 10-24x1/2" cap screw w/washers and nut | 0.70 |
| FRE1220F (3034005) |
 |
1/2"-20 Female rod end (CXG/UNI) | 11.00 |
| FRE3824F (3034002) |
 |
3/8"-24 Female rod end (CXG) | 7.00 |
| FRG00058 |
 |
Grommet 5/8"Hx1/8"GWDx7/8"G diameter | 0.40 |
| FRG01764 |
 |
Grommet17/74"Hx1/8"GWDx13/32"G diameter | 0.25 |
| FRS63212 (3004002) |
 |
6-32x1/2" Round head cabinet screw | 0.10 |
| FRS83212 |
 |
8-32x1/2" Round head cabinet crew for enlarged holes | 0.10 |
| FSB01258 (3006016) |
 |
1/2"x5/8"x3/8"-16 shoulder bolt (CX/UNI) | 2.50 |
| FSB03834 (3006009) |
 |
3/8"x3/4"x5/16"-18 shoulder bolt | 2.00 |
| FSB1258A |
 |
1/2"x5/8"x3/8"-16 shoulder bolt assembly (CX/UNI) | 3.50 |
| FSB3834A |
 |
3/8"x3/4"x5/16"-18 shoulder bolt assembly (CXG) | 3.00 |
| FSM01005 |
 |
#10x1/2" self tapping sheet metal screw | 0.10 |
| FTS00014 |
 |
1/4" tubing strap | 0.20 |
| FTS00038 |
|
3/8" tubing strap [for thermo couple] | 0.25 |
| HCXUFQRT |
 |
PRESS TECH quick release mount tubes for Omni-Uni/CX flash units w/bolts (CH) | 10.00 |
| HCXGFM11 |
 |
CXG flash mount tube | 10.00 |
| HFPGT2X3 |
 |
GT quick change flash plate (CXG) | 15.00 |
| HLPK48NH |
 |
Swivel base wo/holes footer (GT flash stand support, Omni) | 14.25 |
| HOS12090 (8080154) |
|
1/2"-20x9" flash rods (CX,UNI-Revolver mount) | 6.50 |
| KDH00425 (3033008) |
 |
Molded handle (CX,UNI) | 5.00 |
| KML3816F (3032001) |
 |
3/8"-16 female locking lever (UNI) | 8.00 |
| KOC1220H (3033007) |
 |
1/2"-20 cross knob (CX,UNI) | 5.50 |
| SV5X6GT |
 |
5"x6" Flash vent filter kit-velcro+4 filters | 4.00 |
