M&R Sportsman From Press Tech
Some images are available in larger sized. Click on image to see if it is available in full size
This page is printable for catalog use
B-press base parts, E-electrical, F-fasteners, H-press head components, K-knobs & levers, P-pneumatic components, T-press table components. Prices subject to change without notice
| Item | Image | Description | Price |
| BLS00275 (9080215) |
 |
Lift cylinder rod compression spring | 8.00 |
| EESV4F01C (1010040) |
 |
HW1B-V4F01-R E/stop push/turn complete switch
 |
31.50 |
| EMA07803 (1010007) |
 |
Manual/automatic switch and print start/print finish switch
 |
31.00 |
| EOO2112R (1017158) |
 |
On/Off print head switch w/red light | 12.00 |
| EPB00172 (1010006) |
 |
Enter push button switch
 |
10.25 |
| EPP03180 (1020034) |
 |
No-shirt detector 3 pin plug [black-pin #1 wire #3; red+green-pin #2 wire #4; white-pin #3 signal wire OR blue-pin #1 wire #3;pink+brown-pin #2 wire #4; black-pin #3 signal wire for MICRO FE7C-RC6G-M sensor] | 11.00 |
| EPS04180 (1020035) |
 |
No-shirt detector 3 pin socket [see above for wiring] | 8.50 |
| ERP12GMP (1010223) |
 |
4 prong round screw in prox switch 12mm NPN NO | 22.00 |
| ERPCYE2M (1010224S) |
 |
4 pin plug-in round prox switch cable 2M long
|
13.00 |
| ERPCYE5M (1010224L) | SEE ABOVE |
4 pin plug-in round prox switch cable 5M long
|
16.00 |
| ESPF732A (1010005) |
 |

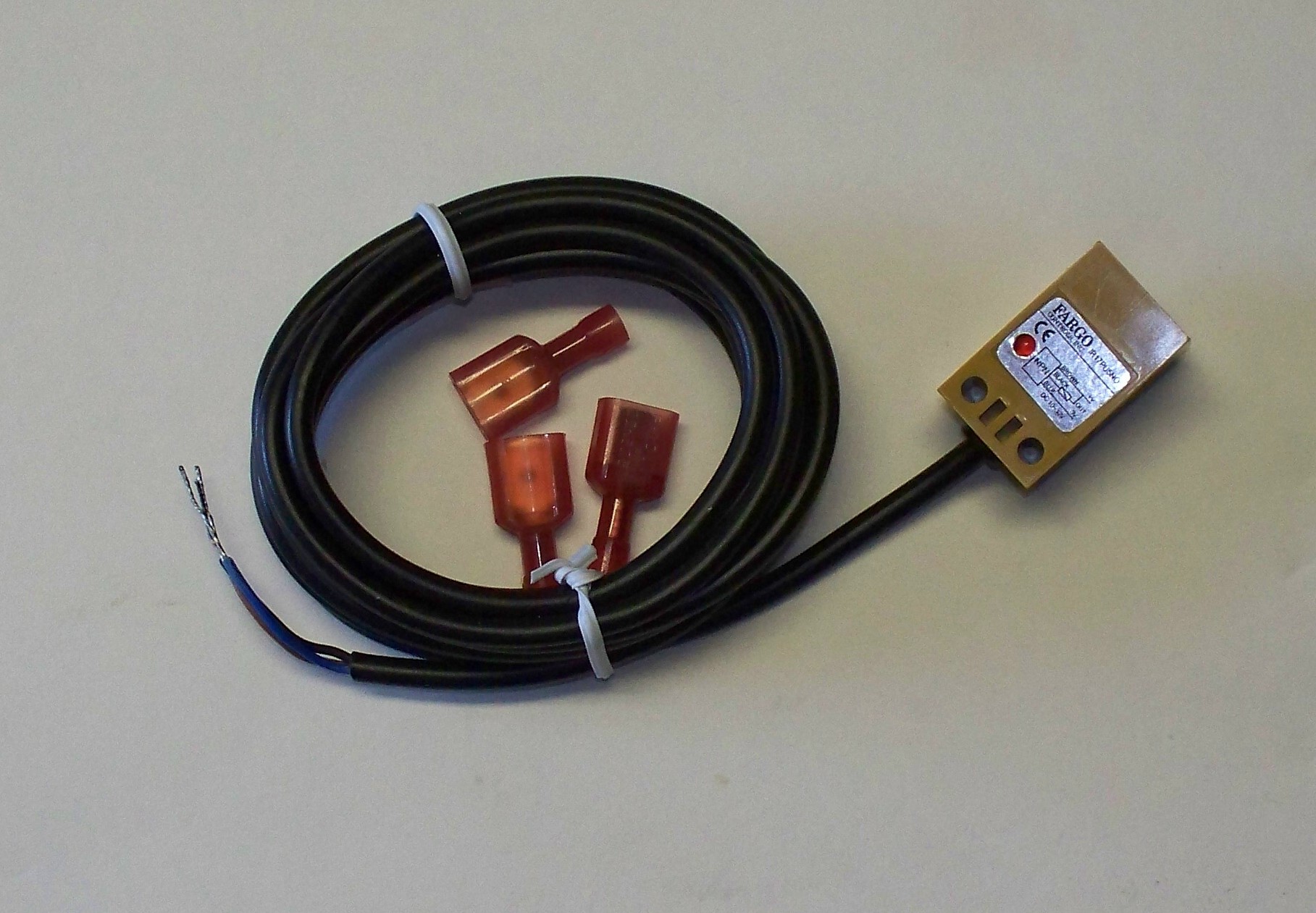

Square proximity switch 2M cord w/terminal ends | 24.00 |
| ESPF735A (1010005) |
 |
Square proximity switch 5M cord w/terminal ends [blue-#3, brown-#4, black-signal (double digit #)]
|
28.00 |
| EFR10013 (1010013) |
 |
On/Off power toggle switch SPST
|
6.50 |
| FAB12214 (3047001) |
 |
1/2" concrete anchor bolt | 1.25 |
| FAB51625 (3047000) |
 |
5/16" concrete anchor bolt | 1.00 |
| FBH01412 (3001005) |
 |
BHC screw 1/4"-20x1/2" head top plate | 0.25 |
| FBH3824P (3001078) |
 |
BHC screw 3/8"-24x1 1/2" pallet leveling stud at end position | 1.00 |
| FCS38162 (3009073) |
 |
3/8"-16X2" SHCS full threaded registration bolt | 2.00 |
| FCS51681 (3009003) |
 |
5/16"-18x1" SHCS cylinder mount plate to carriage support plate | 0.25 |
| FCS83234 (3009032) |
 |
8-32X3/4" SHCS sir lock cylinder mount | 0.25 |
| FFW00038 (3000010) |
 |
3/8" flat washer USS | 0.10 |
| FFW0012L (3020004) |
 |
1/2" flat washer USS off contact threaded rod mount | 0.15 |
| FFW00516 (3020007) |
 |
5/16" flat washer USS | 0.10 |
| FHN03816 (3013007) |
 |
3/8"-16 hex nut | 0.10 |
| FJN01220 (3013023) |
 |
1/2"-20 jam nut | 0.20 |
| FJN03816 (3013014) |
|
3/8"-16 jam nut | 0.10 |
| FJN03824 (3013015) |
 |
3/8"-24 jam nut | 0.10 |
| FJN51624 (3013032) |
|
5/16"-24 jam nut | 0.10 |
| FLW00038 (3022002) |
 |
3/8" lock washer | 0.05 |
| FRE3824F (3034002) |
 |
3/8"-24 Female rod end-Micro adjustment | 7.00 |
| FRE5624F (3034001) |
 |
5/16"-24 Female rod end-Stroke/Capture fork cylinder | 7.00 |
| FRE5624FU (3034001) |
 |
5/16"-24 Female ultra strength rod end | 16.00 |
| FSB51614A (3006015A) |
 |
5/16"x1 1/4"x1/4"-20 Shoulder bolt assembly [clevis fork to cylinder] | 2.00 |
| FSW02153 (9102153) |
 |
Spherical washer for pallet leveling | 1.50 |
| HCW40217 (8010005) |
 |
Cup washer-clamping foot pad for screen locking | 1.00 |
| HMA0056A (8090056) |
 |
4" Micro adjuster-[left/right] | 8.50 |
| HMA0057A (8090057) |
 |
3.25" Micro adjuster-[up/down] | 8.00 |
| KML3816F (3032001) |
 |
Micro lockdown lever 3/8"-16 female (metal) | 8.00 |
| KRSP3090 (3033090) |
 |
Head retractable spring plunger 1/2"-13x.875" for flip-up screen holder | 12.00 |
| KSC33006 (3033006) |
 |
A/C head speed control knob | 3.50 |
| LUB930AA |
 |
White lithium grease 14 1/2 oz cartriage | 6.50 |
| LUBLTF02 |
 |
Tri-Flow w/teflon liquid lubricant 2 oz bottle-excellent for valves and cylinders to displace water and sticky components. WD-40 is a cutting agent and harmful to pneumatic components. | 4.75 |
| OIL70000 (7017000) |
 |
10 wt Non-Detergent oil 1 qt | 4.50 |
| PAL09023B (2009023) |
 |
Air lock cylinder w/barb shaft end wo/foot pad | 0.00 |
| PAL0MTV4 (2018121) |
 |
Air lock switch valve 5/32" ports
 |
26.00 |
| PAM00018 (2014002) |
 |
Muffler 1/8" pipe | 2.50 |
| PBF0038P (2003042) |
 |
3/8" Air plug | 1.50 |
| PBF014UT (2003021) |
 |
1/4" Union tee | 3.75 |
| PBF014UY (2003086) |
 |
1/4" Union Y | 4.50 |
| PBF1418E (2003005) |
 |
1/4" Tube x1/8" Pipe-Elbow | 2.50 |
| PBF1418S (2003001) |
 |
1/4" Tube x 1/8" Pipe-Straight | 3.00 |
| PBF5321E (2003031) |
 |
5/32" Tube x 10-32 Pipe-Elbow [air locks] | 2.50 |
| PBF5321S (2003023) |
 |
5/32" Tube x 10-32 Pipe-Straight [air locks] | 2.00 |
| PBF532UY (2003024) |
 |
5/32" Tube Union Y | 4.75 |
| PCF0250C (2009178) |
 |
1 1/16"x2.5" SS Capture fork cylinder w/buna N bumpers inside
 |
70.00 |
| PCF0300C (2009016) |
 |
1 1/16"x3" SS Capture fork cylinder w/buna N bumpers inside
|
65.00 |
| PFC018PK (2018001) |
 |
1/8" Pipe speed control valve
 |
27.50 |
| PSCV1151 (2019113) |
 |
Chopper valve VQZ1151K-5G-X64
 |
62.00 |
| PSC0AS21 (2009355) |
 |
Stroke cyl 1 1/8" bore x 21" stroke Aluminum (re-build able) | 136.00 |
| TGF0018F (2003055) |
 |
1/8" Pipe straight grease fitting | 0.75 |
| TGF01845 (2003032) |
 |
1/8" Pipe 45 degree grease fitting | 1.00 |
| TQR0153R (9050153A) |
 |
Pallet quick release lever-right [chrome steel, not plastic] | 51.00 |
| TQR0154L (9050154) |
|
Pallet quick release lever-left [chrome steel, not plastic] | 51.00 |
| TRB0001S (3023010) |
 |
1" Registration bearing CF-1S
 |
18.50 |
